Quick Details

  • Light Source: LED
  • Item Type: Street Lights
  • LED Light Source: 3030
  • Input Voltage(V): AC100-277V
  • Lamp Power(W): 170
  • Lamp Luminous Flux(lm): 17465
  • Lamp Luminous Efficiency(lm/w): 108
  • CRI (Ra>): 70
  • Color Temperature(CCT): Cool White
  • Working Temperature(℃): -40 - 50
  • Working Lifetime(Hour): 54000
  • Lamp Body Material: Aluminum
  • IP Rating: IP65
  • Certification: CE, ETL, RoHS
  • Warranty(Year): 5
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: RISE-LITE
  • Model Number: RL-AL-050W
  • Product name: Outdoor Post Light
  • Application: LED Outdoor Post Mount
  • Mounting: 2-3/8'' or 3'' pole adapter for option
  • Lens: Tempered Glass
  • DLC listed other watts: 50w 75w 100w 170w
  • Finish: bronze, black and OEM
  • Beam Angle: 120
  • Optional: twistlock photocell, surge protector, TVSS
  • Certifications: DLC ETL cETL CE ROHS
  • Warranty: 5 years

Packaging & Delivery

Packaging Details ETL DLC 4.0 50W LED Outdoor Post Mount lantern light with 5 years warranty
1 pc/carton
51*51*18cm/carton
G.W: 8kg/carton
Delivery Time samples shipped witin 5 business days; mass order 2-4 weeks.
Specification

ETL DLC 4.0 170W exterior commercial building industrial decorative led facade lighting

High output led Outdoor Post Light with IES type V square distribution, wide and uniform 360 degree pattern,

its sturdy frames encasing unique seed glass panels, the Rise-lite Outdoor Post Light exudes a classic craftsmen style that is bold yet charming. Available in Black or  Bronze, these fixtures will accent any outdoor setting.
Suggested Location: Outdoor Living, Deck, Patio

1, Radiates a soft white light at a 120-degree beam angle with FROSTED tempered glass lens. Clear transparent lens is available with enen higher output
2, Made with a rugged-cast aluminum housing in a black/bronze finish
3, Top mountable via existing round or square pole; UFO post top are sold separately. 2-3/8'' and 3'' post top tenon are for option.
4, Type V photometic pattern
5, 50W, 75W, 100W, 170W available; twistlock photocell sold with additional $10/pc
6, Backed by an impressive 5-year warranty
7, ETL cETL listed for outdoor wet locations; DLC 4.0 rated for energy rebates
8, Custom finish is accpeted with MOQ=50pcs

9, 1-10Vdc/PMW/Resistor (3 IN 1) dimmable

Setting Information
DLC Rated Watts
50W 75W 100W 170W
rated voltage
AC100-277V
material
Aluminum
light color
bronze/black/white and other OEM finish with MOQ=50pcs
installation
post top mounted
temperature
warm white/natural white/cool white
Fits
2-3/8'' or 3'' tenon
Warranty
5 years

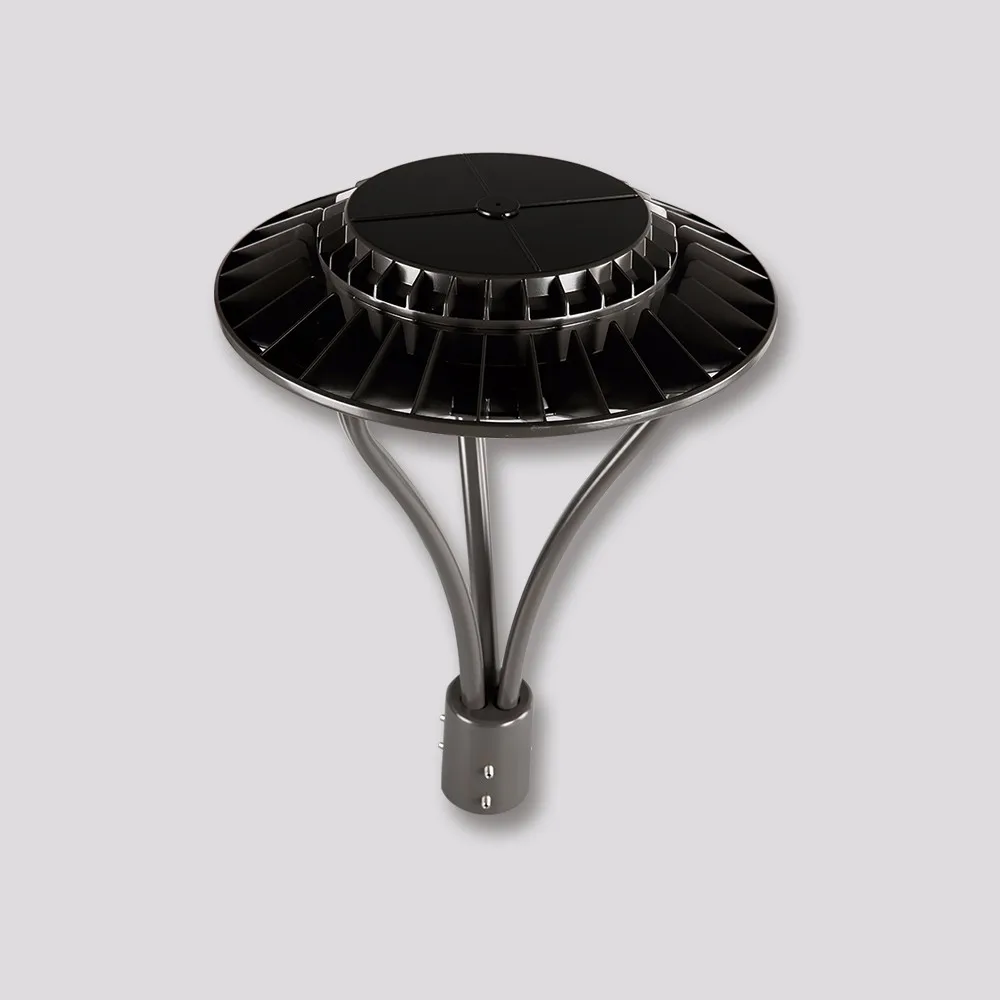

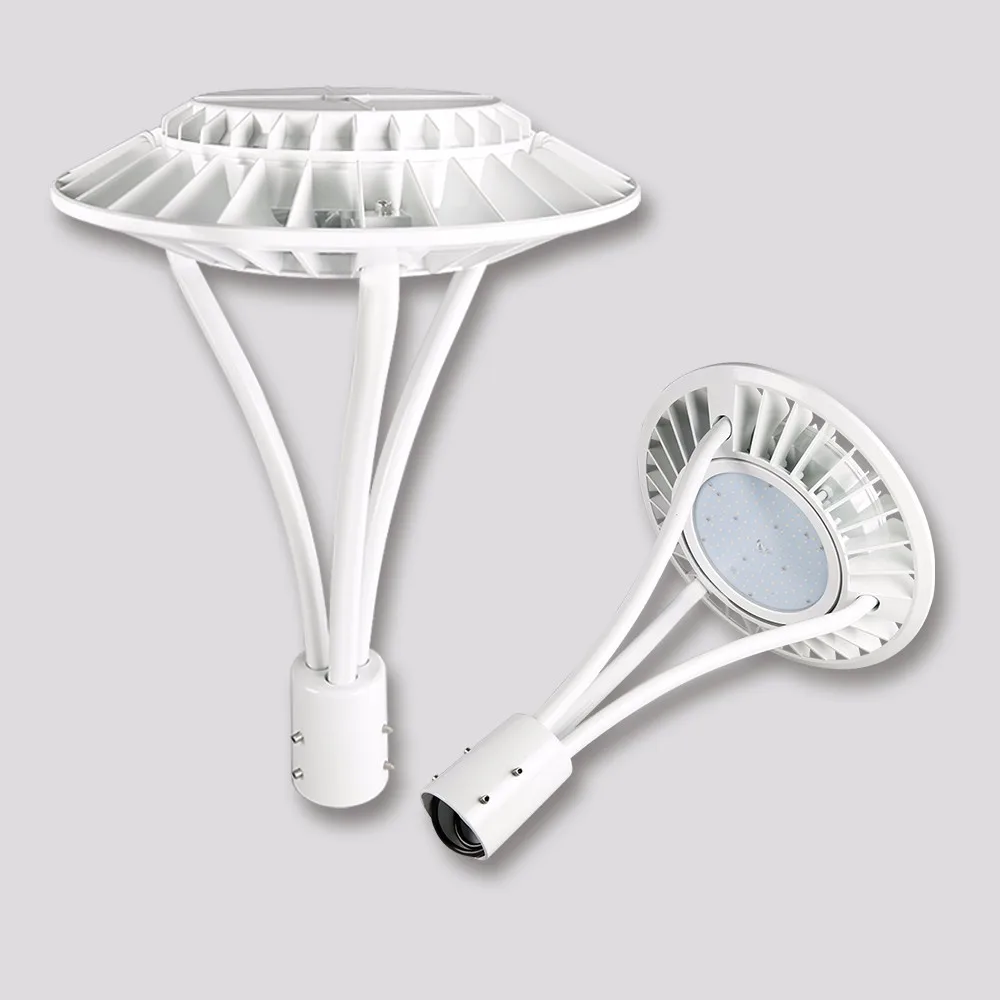

Product Description

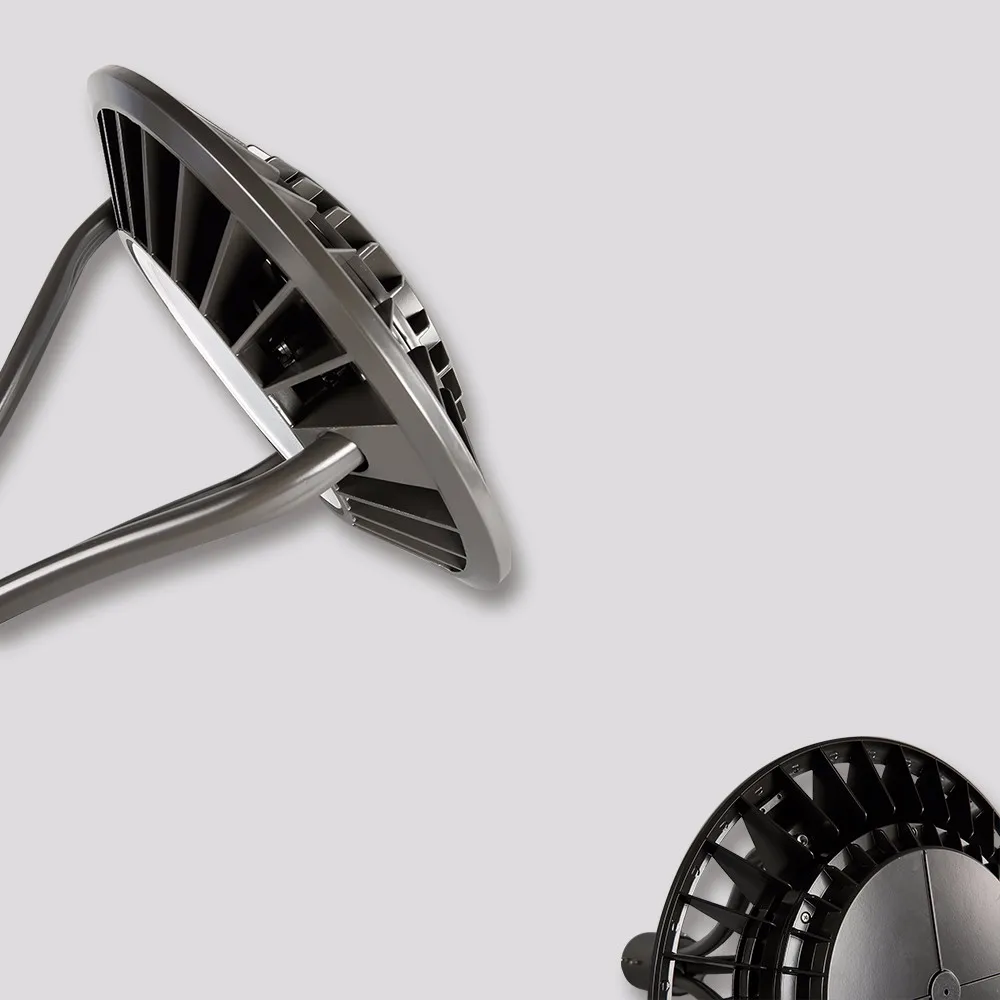

Finish and Optics

Finish:Outdoor Post Light Standard finish is dark bronze (DDB) corrosion resistant polyester powder finish, with other architectural colors available.

Black/white and other OEM finish with MOQ=50pcs


Frosted flat tempered-glass lens.

Distributing Type

Type V distribution. Wide and uniform 360 degree pattern lighting


Type V produces a circular distribution that has the same intensity at all angles. This distribution has a circular symmetry of candlepower that is essentially the same at all lateral angles. It is intended for luminaire mounting at or near center of roadways, center islands of parkway, and intersections. It is also meant for large, commercial parking lot lighting as well as areas where sufficient, evenly distributed light is necessary.

Chic Style

Outdoor Post Light has an elegant appearance, decorative style. Ideal for home garden, park, yard, building facade and driveway.


This outdoor post light is a simple and an elegant way to enhance your homes curb-appeal.

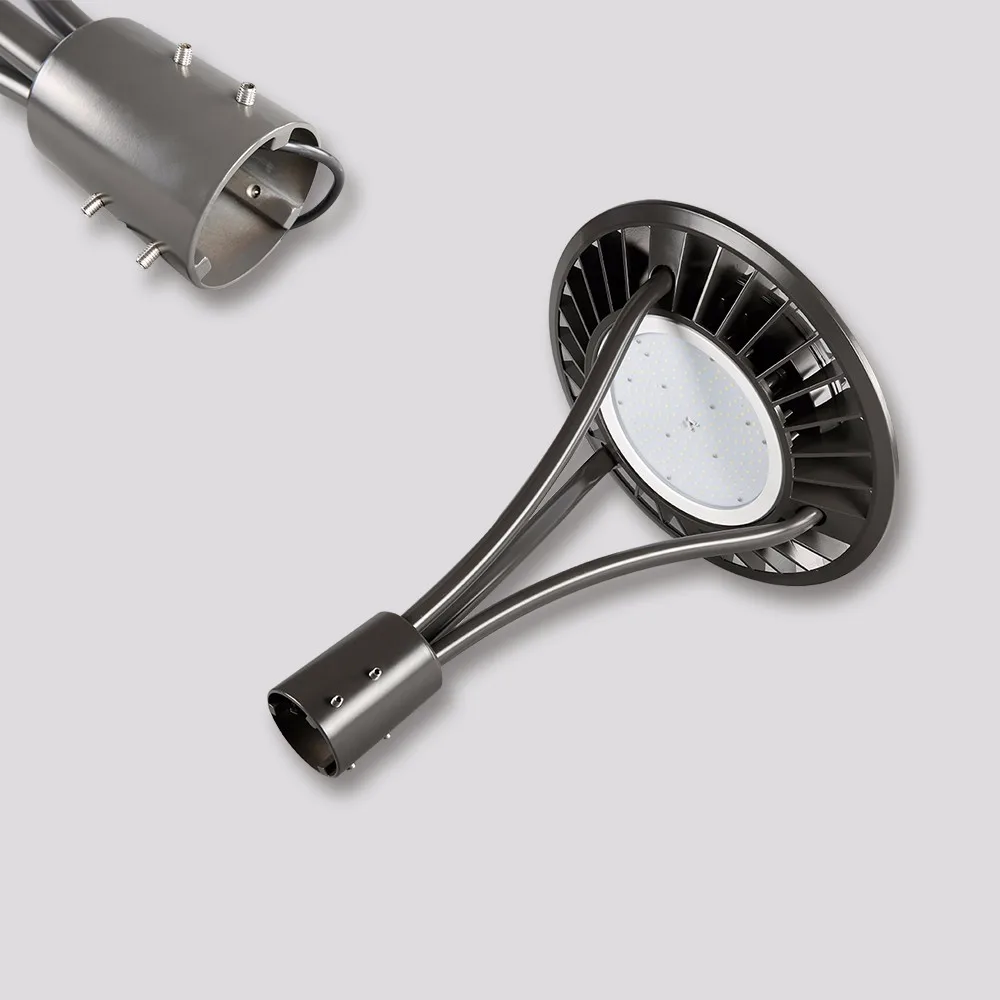

 Mounting Fit

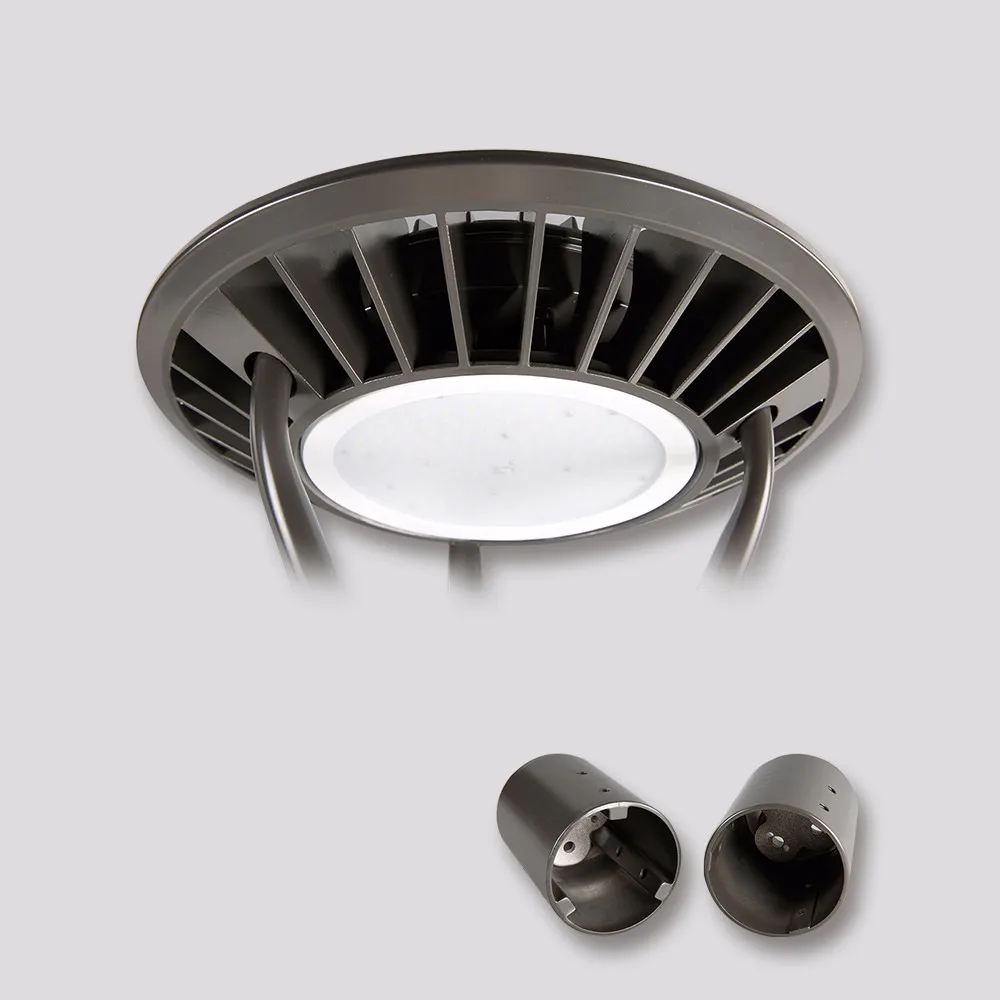

Mounting: Mounts to an undrilled, 3" or 2-3/8'' diameter round pole top using an internal expansion fitter.


Post top tenon fit

Standard: 2-3/8''

Optional: 3''

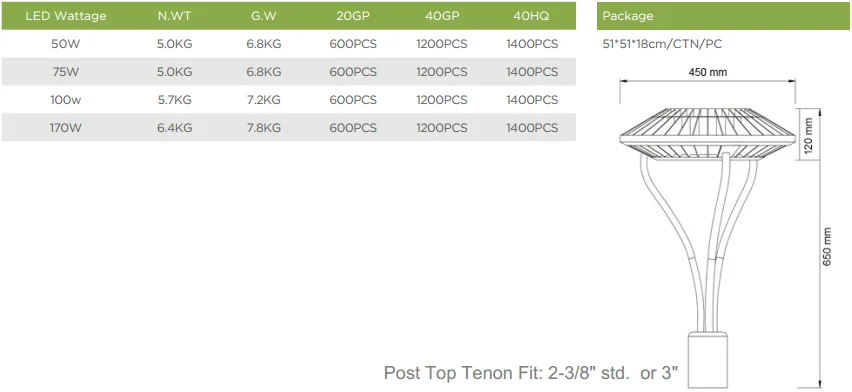

Specs and Packing

1 pc/carton
51*51*18cm/carton
G.W: 8kg/carton

Shipping method: DHL, UPS, FedEx, by Air, by sea are optional
EXPRESS: around 5-7 working days to arrive
Delivery Time: 7~10 days for samples; 2~4 weeks for mass order
Label, package and shippment are under discussion.
Shipping port: Shenzhen

Outdoor Post Lantern has 4 wattages ETL DLC listed, 50W 75W 100W 170W.

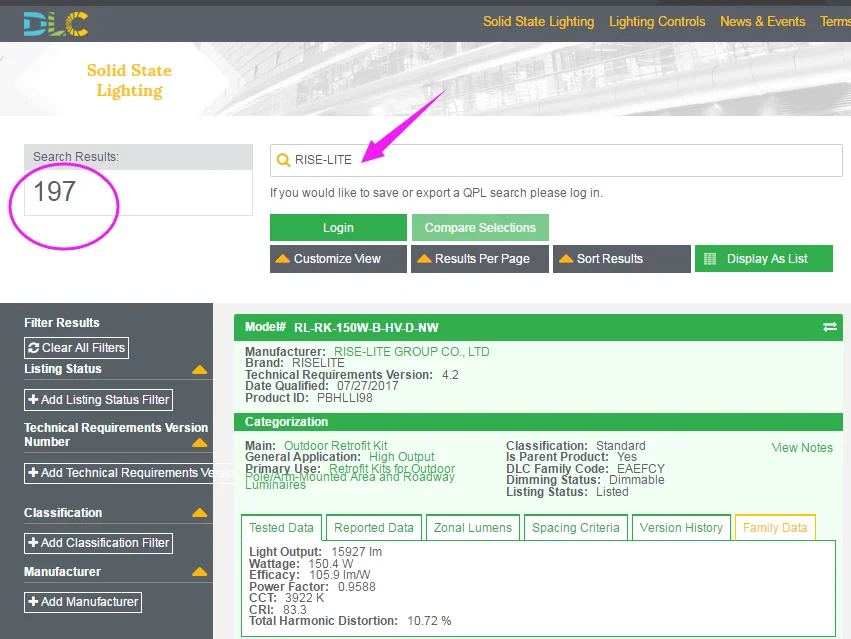

All data from DLC testing verified on DLC.com.
Model
RL-AL-050W-V-LV-N
RL-AL-075W-V-LV-N
RL-AL-100W-V-LV-N
RL-AL-170W-V-LV-N
Output lemens
5685
8429
9964
      17465
Light Watt
50W
75W
100W
       170W
Input Voltage
AC100-277V
      AC100-277V
       AC100-277V
    AC100-277V
Installation Process

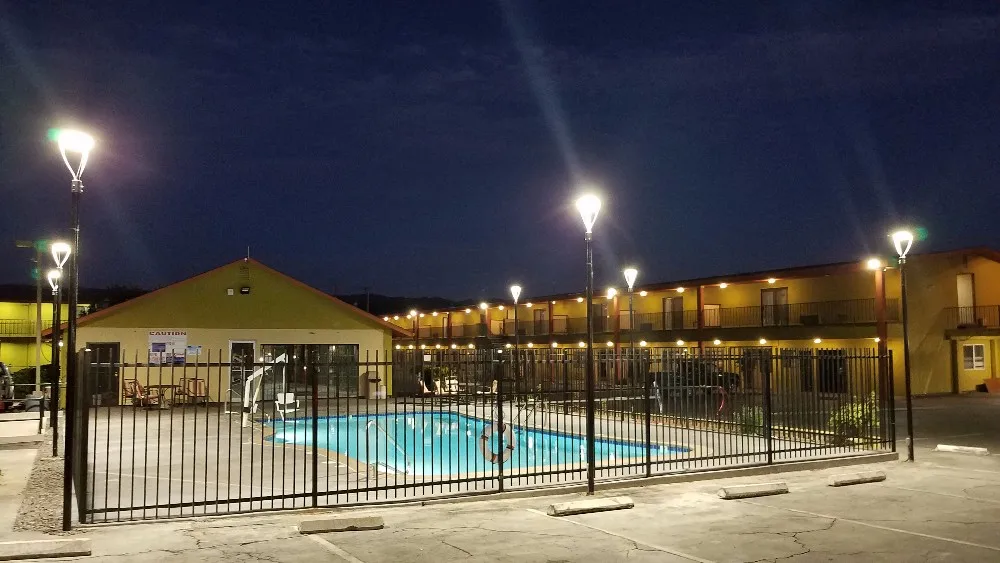

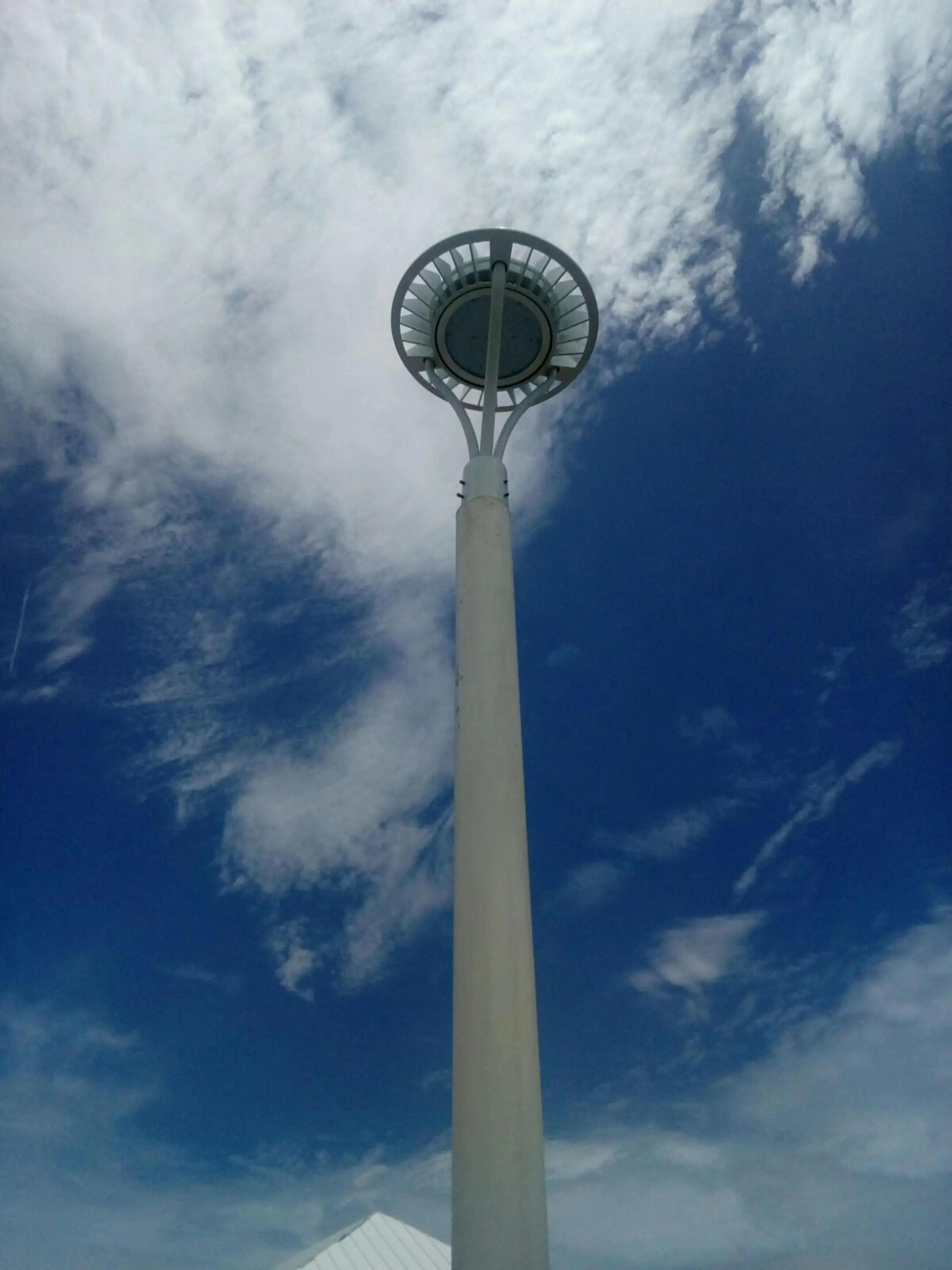

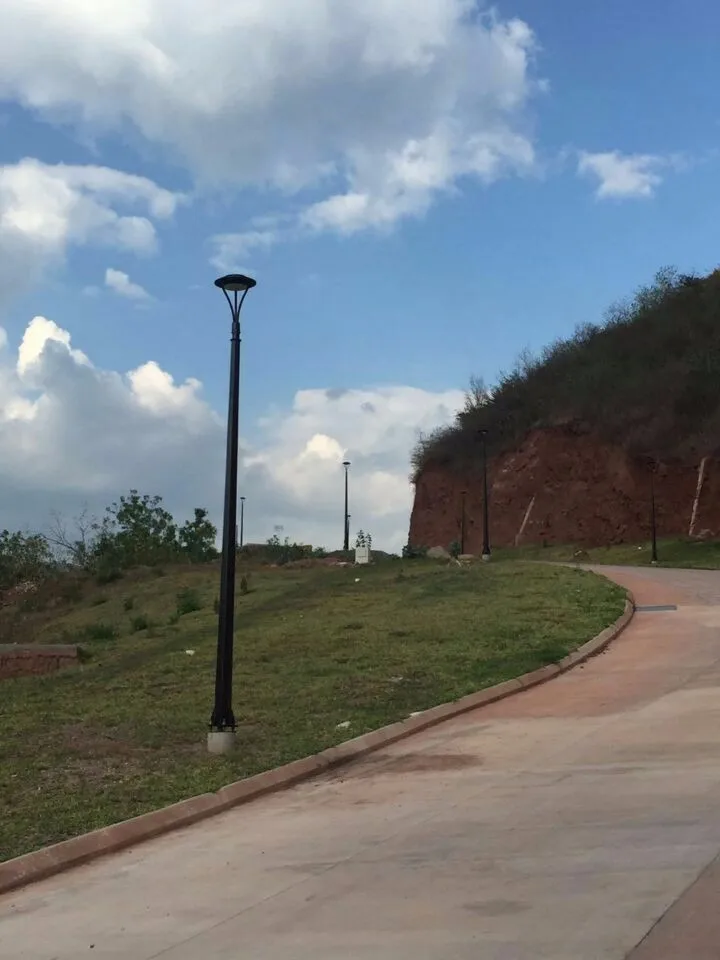

Applications

Outdoor Post Lantern / industrial decorative led outdoor post light

You'll find that Rise-lite decorative led outdoor post light provides superior photometric performance along with architectural appeal for your area lighting applications. Whichever wattage you choose, Rise-lite decorative led outdoor post lights are perfect for bringing outdoor lighting to downtown spaces, commercial developments, parks and residential communities.

Certifications
Company Information

  Rise-lite Group, Co, Ltd, established in 2009, is acknowledged internationally as one of the best led lighting provider. Based in Shenzhen, Rise-lite has been leading LED technology to provide innovative, attractive, functional and cost effective solutions for more than 8 years, offering UL/ETL/DLC qualified LED Street Lights, LED Parking Lot Lights, LED Gas Station Canopies, LED Flood Lights, LED retrofit kits, LED troffers, etc.

   At Rise-lite we are not just about selling you LED light bulbs, LED light fixtures and LED light components we are also about helping you achieve amazing and successful lighting results in your business. If you want your lighting to aid your business contact us by email and we will be glad to change what you thought of lighting forever. In Rise-lite guarantee results for all budgets with our vast list of services on offer, including lighting advice, lighting design, custom product designs, and project supporting.

A professional LED lighting supplier, we remain true to our core values, wholeheartedly committed to advancing and transforming the illumination experience. We hope you join us and share our passion for energy efficient lighting and our commitment to quality.

FAQ

Q1. Can I have a sample order for this fixture? Do you have any MOQ limit for led outdoor post light?
A: Yes, 1 pc sample order is accepted. no MOQ required.

Q2. What about the lead time?
A:Sample needs 3-5 workdays, mass production time needs 2-4 weeks.

Q3. What is the light source and driver of the outdoor led outdoor post light?
A:We use best quality 3030 chips and meanwell driver .

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually express samples by DHL, UPS or FedEx. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. Is it OK to print my logo on led light product or order another finish?
A: Yes. MOQ=50pcs

Q6: Do you offer guarantee for the products?
A: Yes, we offer 5 years warranty to all of our products.

Q7: Payment accept?
TT
L/C
Western Union
Credit card or e-checking via Alibaba

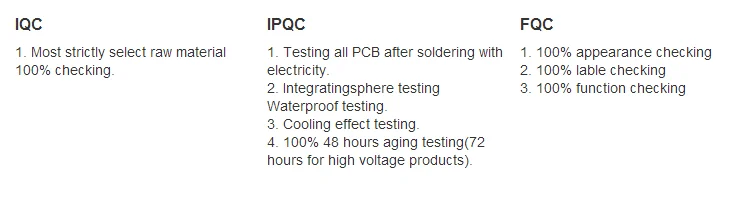

Q8. How is the quality control?
